pellet press machines

Currently, biomass energy plays a vital role in meeting the needs of energy, especially in developing countries. Biomass pellets are clean, green, economical and environmentally friendly, and they have the potential to meet the additional energy demands of urban and industrial sectors. Biomass pellets are made of various kinds of biomass powders of rice husks, straw, sawdust, wood chips, wood shavings, peanut shells and grass, and they are made by the pellet press machines.

 Flat Die Small Pellet Press Machines with Electric Motor:

ZLSP200B flat die small pellet mill ZLSP200C flat die pellet mill
ZLSP200B Flat Die Pellet Mill ZLSP 200C Small Flat Die Pellet Mill

Technical Parameters:

Model Capacity Power Net Weight Outside Dimension(mm)
ZLSP-150B 50-100kg/h 3phase5.5kw 95kg 800*450*700
ZLSP-200B 80-120kg/h 3phase7.5kw 200kg 1000*480*930
ZLSP-230B 120-200kg/h 3phase11kw 290kg 1180*540*1000
ZLSP-260B 160-250kg/h 3phase15kw 320kg 1240*540*950
ZLSP-300B 250-400kg/h 3phase22kw 350kg 1300*560*1100
ZLSP-150C 60-110kg/h 3phase5.5kw 105kg 1000*480*780
ZLSP-200C 80-120kg/h 3phase7.5kw 210kg 1050*550*830
ZLSP-230C 120-200kg/h 3phase11kw 290kg 1200*560*950
ZLSP-260C 160-250kg/h 3phase15kw 340kg 1240*580*1000
ZLSP-300C 250-400kg/h 3phase22kw 425kg 1300*620*1100

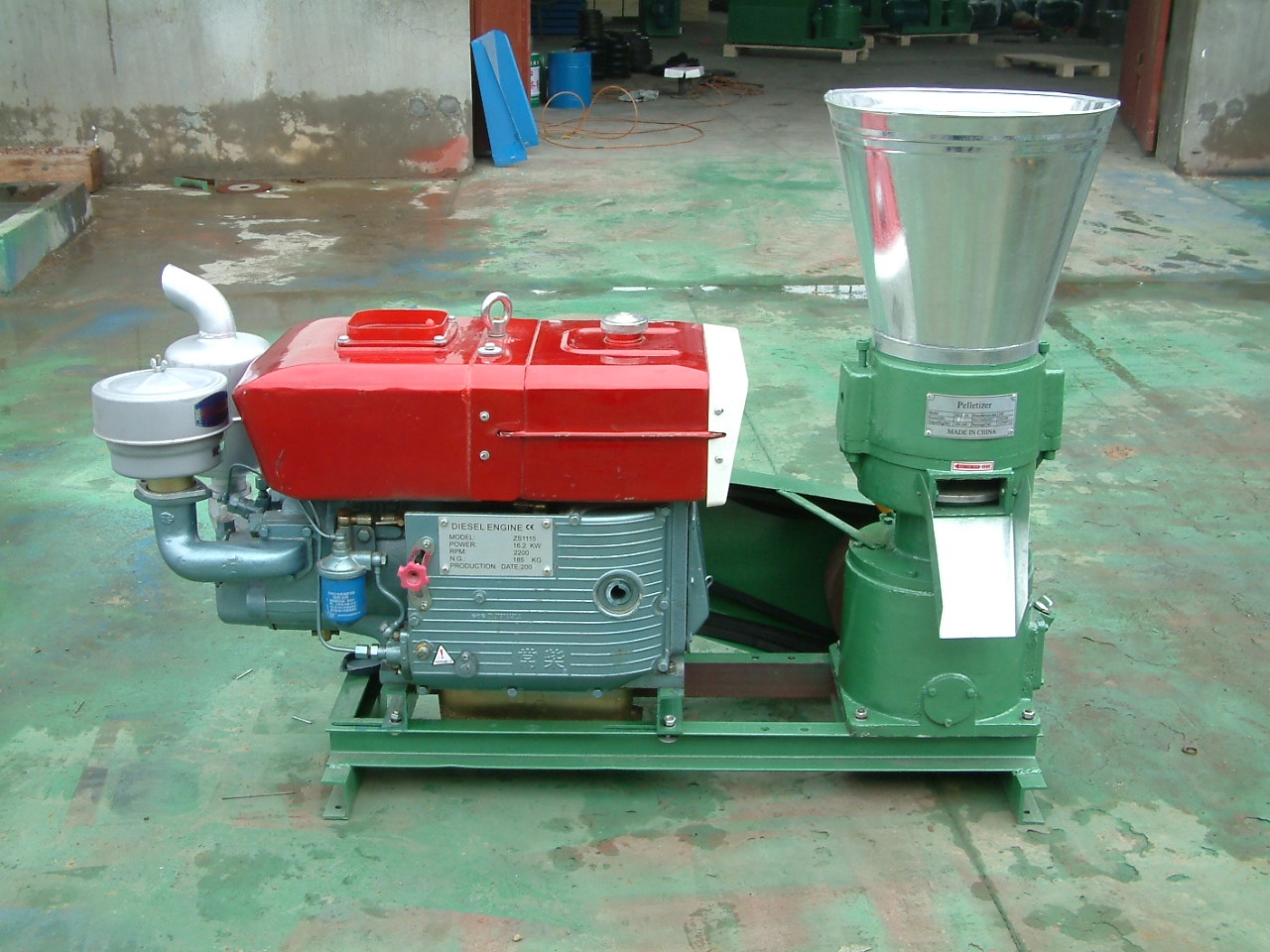

Flat Die Pellet Press Machines with Diesel Engine:

flat die pellet mill with diesel engine

Technical Parameters:


Model Capacity Power Net Weight Outside Dimension(mm)
ZLSP-150A 50-100kg/h 8Hp 180kg 1000*500*750
ZLSP-200A 80-120kg/h 15Hp 210kg 1460*750*900
ZLSP-230A 120-200kg/h 22Hp 280kg 1560*850*1000
ZLSP-260A 160-250kg/h 30Hp 330kg 1200*500*1070
ZLSP-300A 250-400kg/h 55Hp 410kg 1220*600*1000

Gasoline Flat Die Pellet Press Machines

120 Q gasoline flat die pellet mill 150Q gasoline flat die pellet mill
120Q Gasoline Flat Die Pellet Mill 150Q Gasoline Flat Die Pellet Mill

Technical Parameters:

Model Capacity Power Net Weight Outside Dimension(mm)
ZLSP-120Q 40-80kg/h 7.5Hp 120kg 900*500*730
ZLSP-150Q 50-100kg/h 10Hp 180kg 1000*500*750

Pellet press machines generally have two types: flat die type and ring die type. Flat die type is for the small scale pellets production, while the ring die type is for the large scale. No matter which type of pellet press machine is used, the well prepared biomass powders should contain proper amount of moisture. If there is no pellet coming out of the machine, or the pellets’surface is rough, the reason may lies in that the moisture content of the materials is too high. If the moisture content is too low, the pellets will be very soft and easy to break. Besides, the materials need to be added in time to increase the pellets yield and to reduce the wear of die and rollers.

We are a leading Chinese manufacturer and exporter of pellet press machines. Our pellet press machines can be customized based on your specific requirements. We offer not only high quality pellet press machines, but also free skilled technical guidance, as well as satisfactory after sales service! You can absolutely rely on our pellet press machines.
